Drilling Rigs
Legend Forage SARL acquired fleet of 8 drilling rigs from India. Now we have range of 5 drilling rigs mounted on Ashok Leyland 6×4 trucks coupled with ELGI 1100 CFM/ 300PSI Air Compressors. All the equipment are well maintained and updated time to time to fit in the competitive market.

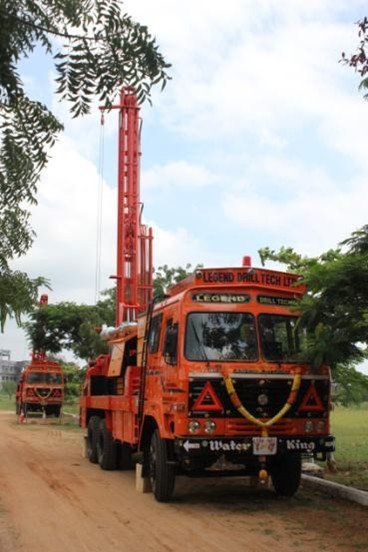

DTH 1500 drilling rigs mounted on Ashok Leyland 2523-6X4 chassis equipped with 27 feet heavy duty channel mast(15 feet Rod & 20feet casing handling capacity), power pump for foam injection for destructive drilling.
Hydraulic drill rig powered by L&T pump & Dan Foss motors, four (4) hydraulic leveling jacks and Oil Cooler for smooth running of hydraulic system.
COMPRESSOR: 1100 CFM/300 PSI ELGI make compressor mounted on the same truck.
MUD PUMP

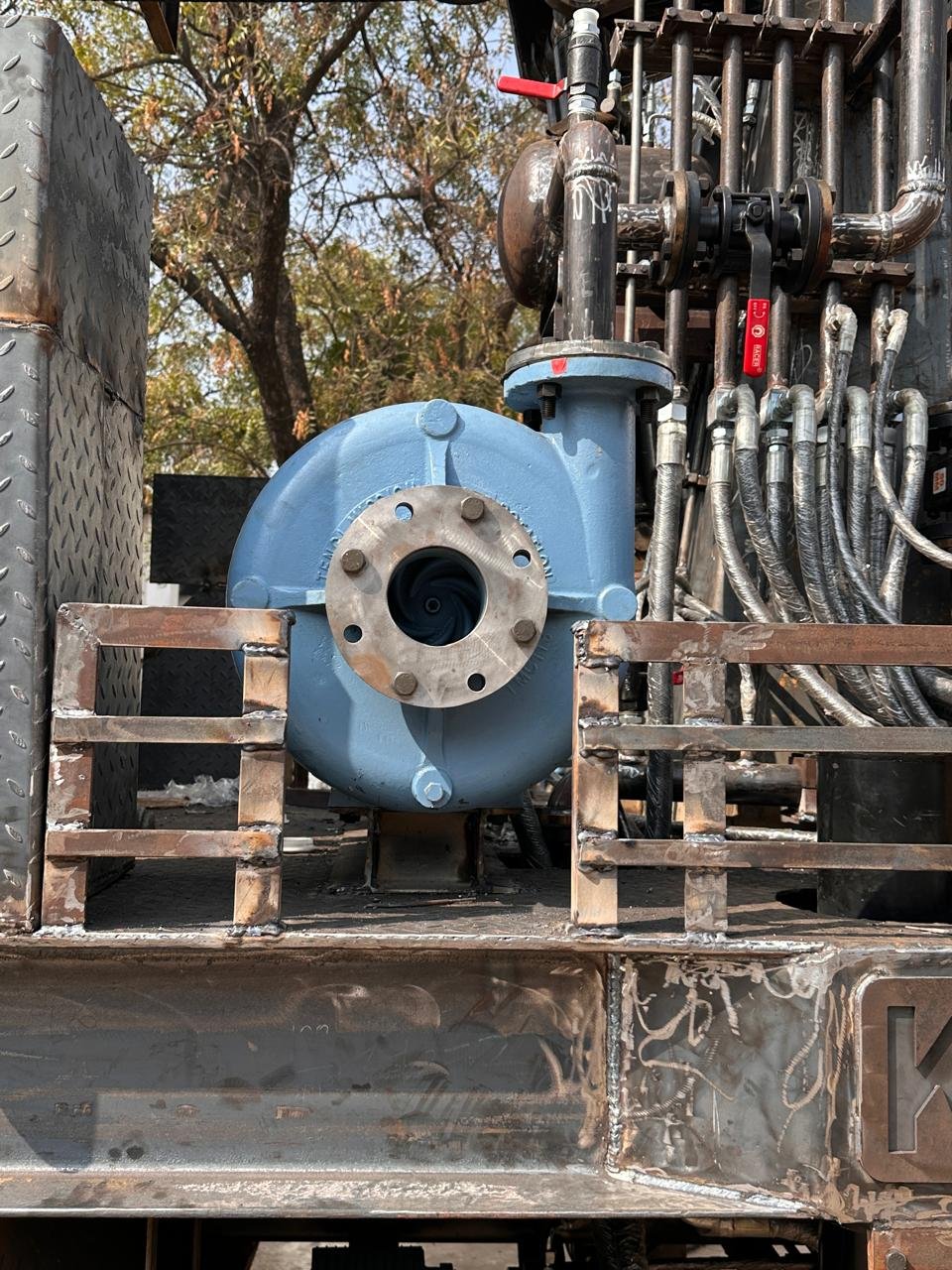

MUD PUMP: Mission Magnam Centrifugal mud pump capacity to drill with maximum 16” diameter and depth of maximum 150 mtrs (under favorable conditions).
SUPPORT VEHICLES

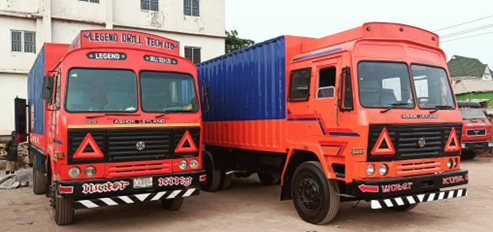

Service Trucks: Ashok Leyland 1616 support trucks
16 TONS capacity – 3nos
Toyota Hilex 4×4 pick up – 1 no, Lexes Car- 1no
Pump Test Unit – 1 No
